Build
Local Simulation, Benchmarking & Gas Profiling

Local Simulation, Benchmarking & Gas Profiling

Overview

The previous tutorial demonstrates how you can deploy and interact with Move contracts using various CLI commands.

By default, those commands send a transaction to the remote fullnode for simulation and execution. You can override this behavior and simulate the transaction locally, by appending one of the following command line options of your preference:

  • --local: Simulate the transaction locally without conducting any further measurements or analysis.
  • --benchmark: Benchmark the transaction and report the running time(s).
  • --profile-gas: Profile the transaction for detailed gas usage.

These additional options can be used in combination with the following CLI commands:

  • aptos move run
  • aptos move run-script
  • aptos move publish

Alternatively, if you are interested in replaying a past transaction, check out this tutorial.

ℹ️

Local simulations do not result in any to the on-chain state.

Deploying the Example Contract

For demonstration purposes, we will continue to use the hello_blockchain package as an example.

First, publish the package to devnet or testnet (if you haven’t done so already).

Change into the package directory.

Terminal
cd aptos-move/move-examples/hello_blockchain

Then publish the package using the following command.

Terminal
aptos move publish --named-addresses hello_blockchain=default --assume-yes
Output
{
  "Result": {
    "transaction_hash": "0xe4ae0ec4ea3474b2123838885b04d7f4b046c174d14d7dc1c56916f2eb553bcf",
    "gas_used": 1118,
    "gas_unit_price": 100,
    "sender": "dbcbe741d003a7369d87ec8717afb5df425977106497052f96f4e236372f7dd5",
    "sequence_number": 5,
    "success": true,
    "timestamp_us": 1713914742422749,
    "version": 1033819503,
    "vm_status": "Executed successfully"
  }
}

Notice that you do need to have your CLI profile set up properly and bind the named addresses correctly. Please refer to CLI Configuration for more details.

ℹ️

Note: publishing the package to devnet/testnet is just one way to set up the stage for local simulation and is not the only one possible. Alternatively you can use a local node, or simulate transactions that do not need to have code published first, such as scripts and even the package publishing transaction itself.

Local Simulation

Next, execute the entry function message::set_message with local simulation enabled using the additional command line option --local. This will execute the transaction locally without conducting any further measurements or analysis.

Terminal
aptos move run --function-id 'default::message::set_message' --args 'string:abc' --local
Output
Simulating transaction locally...
{
  "Result": {
    "transaction_hash": "0x5aab20980688185eed2c9a27bab624c84b8b8117241cd4a367ba2a012069f57b",
    "gas_used": 441,
    "gas_unit_price": 100,
    "sender": "dbcbe741d003a7369d87ec8717afb5df425977106497052f96f4e236372f7dd5",
    "success": true,
    "version": 1033887414,
    "vm_status": "status EXECUTED of type Execution"
  }
}
ℹ️

Local and remote simulation shall produce identical results.

Benchmarking

To measure the running time(s) of your transaction, use the --benchmark option.

Terminal
aptos move run --function-id 'default::message::set_message' --args 'string:abc' --benchmark
Output
Benchmarking transaction locally...
Running time (cold code cache): 985.141µs
Running time (warm code cache): 848.159µs
{
  "Result": {
    "transaction_hash": "0xa2fe548d37f12ee79df13e70fdd8212e37074c1b080b89b7d92e82550684ecdb",
    "gas_used": 441,
    "gas_unit_price": 100,
    "sender": "dbcbe741d003a7369d87ec8717afb5df425977106497052f96f4e236372f7dd5",
    "success": true,
    "version": 1033936831,
    "vm_status": "status EXECUTED of type Execution"
  }
}

It’s worth noting that these running times serve only as informational references, as they are contingent upon the specifications of your local machine and may be influenced by noise or other random factors.

If you are aiming to optimize your contract, you should base your decisions on the gas profiling results.

ℹ️

To minimize measurement errors, the benchmark harness executes the same transaction multiple times. For this reason, it may take a while for the benchmark task to complete.

Gas Profiling

The Aptos Gas Profiler is a powerful tool that can help you understand the gas usage of Aptos transactions. Once activated, it will simulate transactions using an instrumented VM, and generate a web-based report.

The gas profiler can also double as a debugger since the report also includes a full execution trace.

Using the Gas Profiler

The gas profiler can be invoked by appending the --profile-gas option.

Terminal
aptos move run --function-id 'default::message::set_message' --args 'string:abc' --profile-gas
Output
Simulating transaction locally using the gas profiler...
Gas report saved to gas-profiling/txn-d0bc3422-0xdbcb-message-set_message.
{
  "Result": {
    "transaction_hash": "0xd0bc342232f14a6a7d2d45251719aee45373bdb53f68403cfc6dc6062c74fa9e",
    "gas_used": 441,
    "gas_unit_price": 100,
    "sender": "dbcbe741d003a7369d87ec8717afb5df425977106497052f96f4e236372f7dd5",
    "success": true,
    "version": 1034003962,
    "vm_status": "status EXECUTED of type Execution"
  }
}

You can then find the generated gas report in the directory gas-profiling:

    • Move.toml
          • index.html

    index.html is the main page of the report, which can view using your web browser. Sample report

    Understanding the Gas Report

    The gas report consists of three sections that help you to understand the gas usage through different lenses.

    Flamegraphs

    The first section consists of visualization of the gas usage in the form of two flamegraphs: one for execution & IO, the other for storage. The reason why we need two graphs is that these are measured in different units: one in gas units, and the other in APT.

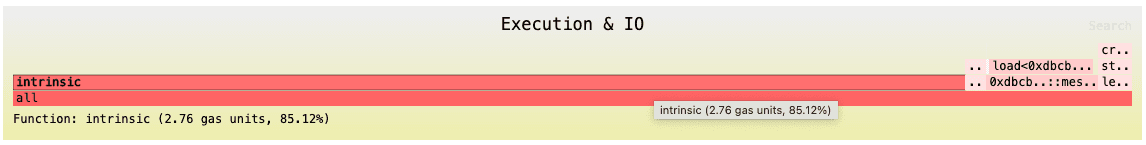

    It is possible to interact with various elements in the graph. If you hover your cursor over an item, it will show you the precise cost and percentage. gas-profiling-flamegraph-0.png

    If you click on an item, you can zoom into it and see the child items more clearly. You can reset the view by clicking the “Reset Zoom” button in the top-left corner. gas-profiling-flamegraph-1.png

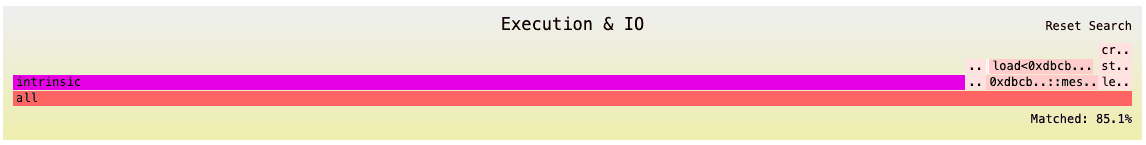

    There is also “Search” button in the top-right corner that allows to match certain items and highlight them. gas-profiling-flamegraph-2.png

    Cost Break-down

    The second section is a detailed break-down of all gas costs. Data presented in this section is categorized, aggregated and sorted. This can be especially helpful if you know what numbers to look at.

    For example, the following tables show the execution costs of all Move bytecode instructions/operations. The percentage here is relative to the total cost of the belonging category (Exec + IO in this case).


    Full Execution Trace

    The final section of the gas report is the full execution trace of the transaction that looks like this:

    Example execution trace
        intrinsic                                                     2.76        85.12%
        dependencies                                                  0.0607      1.87%
            0xdbcb..::message                                         0.0607      1.87%
        0xdbcb..::message::set_message                                0.32416     10.00%
            create_ty                                                 0.0004      0.01%
            create_ty                                                 0.0004      0.01%
            create_ty                                                 0.0004      0.01%
            create_ty                                                 0.0004      0.01%
            create_ty                                                 0.0008      0.02%
            imm_borrow_loc                                            0.00022     0.01%
            call                                                      0.00441     0.14%
            0x1::signer::address_of                                   0.007534    0.23%
                create_ty                                             0.0008      0.02%
                move_loc                                              0.000441    0.01%
                call                                                  0.004043    0.12%
                0x1::signer::borrow_address                           0.000735    0.02%
                read_ref                                              0.001295    0.04%
                ret                                                   0.00022     0.01%
            st_loc                                                    0.000441    0.01%
            copy_loc                                                  0.000854    0.03%
            load<0xdbcb..::0xdbcb..::message::MessageHolder>          0.302385    9.33%
            exists_generic                                            0.000919    0.03%
            not                                                       0.000588    0.02%
            br_false                                                  0.000441    0.01%
            imm_borrow_loc                                            0.00022     0.01%
            move_loc                                                  0.000441    0.01%
            pack                                                      0.000955    0.03%
            move_to_generic                                           0.001838    0.06%
            branch                                                    0.000294    0.01%
            @28
            ret                                                       0.00022     0.01%
        ledger writes                                                 0.097756    3.01%
            transaction
            events
            state write ops                                           0.097756    3.01%
                create<0xdbcb..::0xdbcb..::message::MessageHolder>    0.097756    3.01%

    The left column lists all Move instructions and operations being executed, with each level of indentation indicating a function call.

    The middle column represents the gas costs associated with the operations.

    There is also a special notation @number that represents a jump to a particular location in the byte code. (@28 in the snippet above) This is purely informational and to help understand the control flow.
